| SPECIFICATION | |
| Voltage | AC 240V 50/60 Hz |
| Rated Current | 10A, 16A, 20A, 32A |
| Rated residual current (IΔn) | 30mA |
| Interrupting Capacity (IC) | 6kA |
| Mounting mode | Plug On |
| Standard | TIS.909-2548 IEC61008 |
| Dimension | 19 x 83 x 73mm |
| Made in | Thailand |

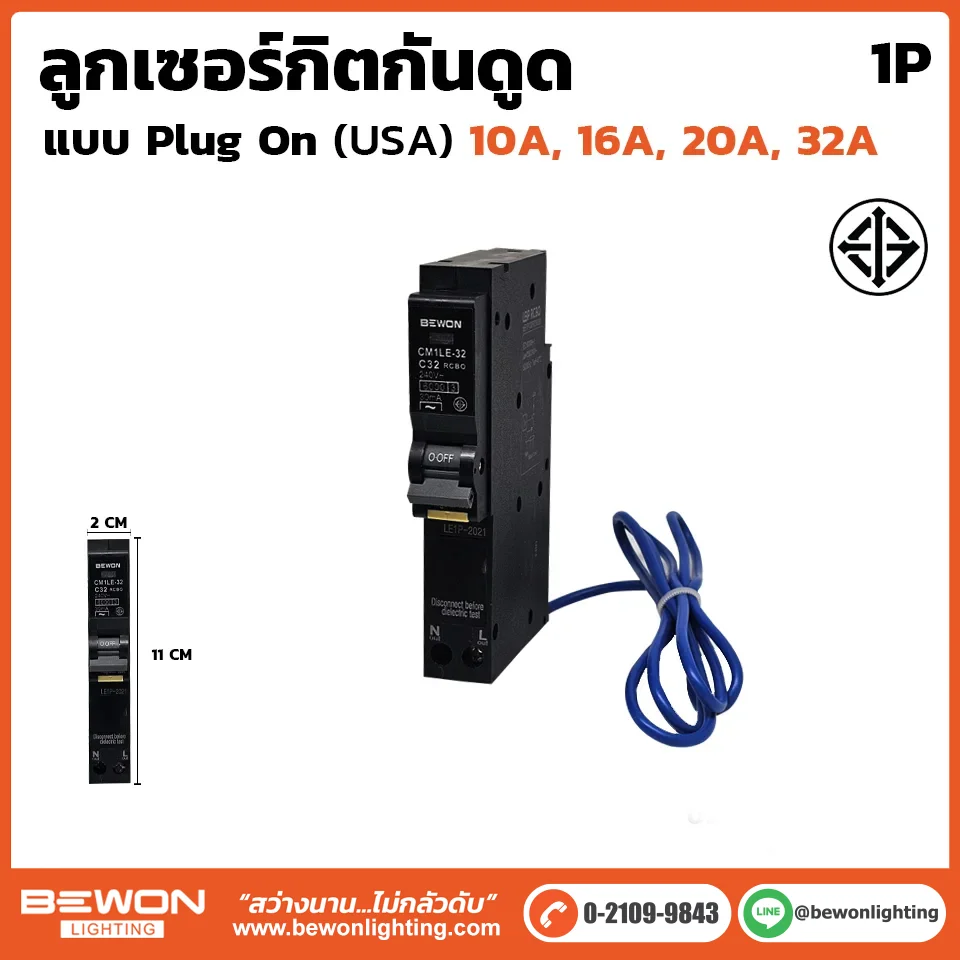

ลูกเซอร์กิตเบรกเกอร์ กันดูด (Plug On)
• ลูกเซอร์กิตแบบ Plug On
• สำหรับงานในตู้คอนซูมเมอร์ยูนิต ตู้คอนโทรล ตู้โหลดเซนเตอร์
• มีให้เลือกรุ่น 10A, 16A, 20A, 32A
• ป้องกันการใช้กระแสไฟฟ้าเกินกำหนด หรือไฟฟ้าลัดวงจร
• ผลิตจากวัสดุคุณภาพสูง ไม่ลามไฟ
• Plug On circuit breakers.
• For use in consumer unit cabinets, control cabinets, load center cabinets.
• Available 10A, 16A, 20A, 32A.
• Protects against overcurrent or short circuits.
• Made of high-quality, flame-retardant materials.
