| SPECIFICATION ตู้คอนซูมเมอร์ยูนิต (เกาะราง) 6 ช่อง |
|
| Main Circuit Breaker | (Select) 32A, 50A, 63A |
| Circuit Breaker | 6 beakers |
| Voltage | AC 220V 50/60 Hz |
| Resistance Short Circuit limit | 10 KA |
| Voltage Insulation | Not more than 400V |
| Impact resistant voltage | 6-8KV |
| Protection level | IP30 |
| Weight | 2.10Kg |
| Standard | TIS.1436-2540 |
| Made in | Thailand |

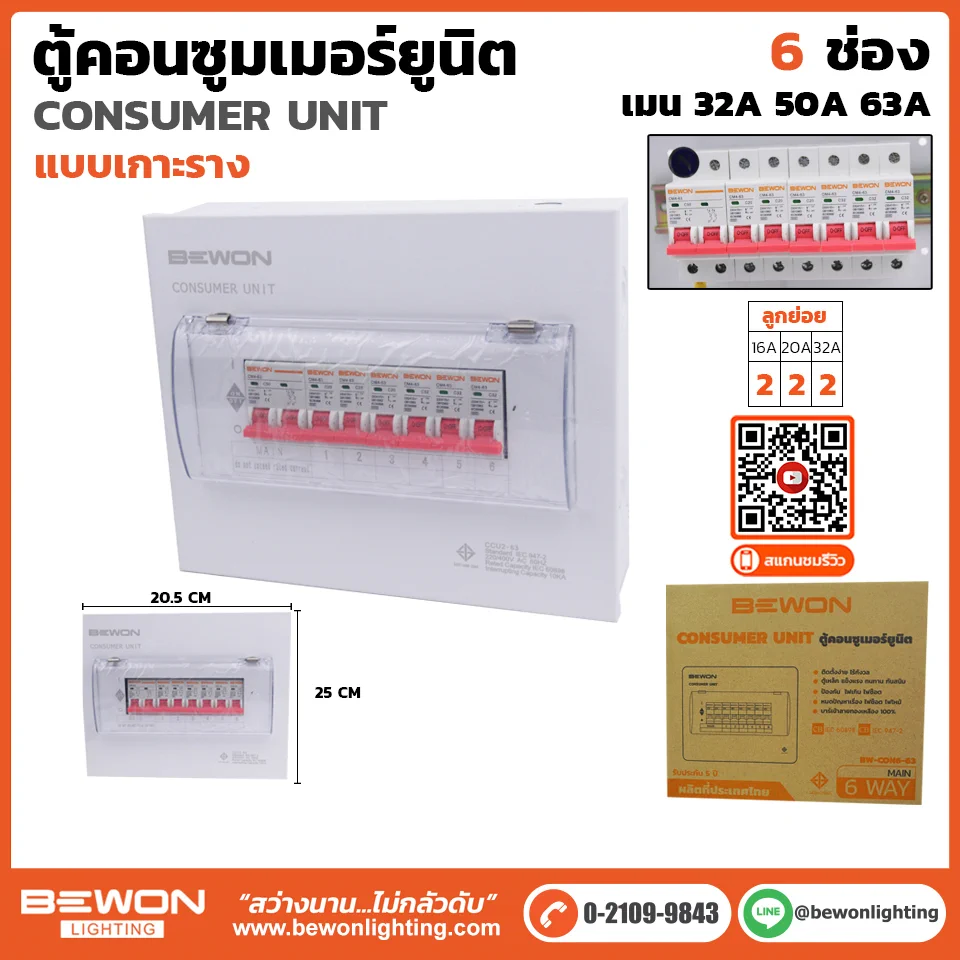

ตู้คอนซูมเมอร์ยูนิต (เกาะราง) 6 ช่อง
• ป้องกันไฟเกิน ไฟลัดวงจร
• มาตรฐานการติดตั้งเมนเซอร์กิตและลูกเซอร์กิตแบบเกาะราง (DIN Rail)
• บาร์ทองเหลืองเพื่อประสิทธิภาพในการนำไฟฟ้า
• ตู้เหล็กแข็งแรงทนทาน ด้วยความหนาถึง 1.0 มิล
• เคลือบสีอีพร็อกซี่เพื่อป้องกันสนิมและการผุกร่อน
• ได้มาตรฐานตู้คอนซูมเมอร์ยูนิก มอก.1436-2540
• รับประกันอุปกรณ์ 2 ปี และตู้ 5 ปี
• ผลิตในประเทศไทย
• Protection against overload, short circuit.
• Installation standard for main circuit DIN Rail.
• Brass bar for conductive performance.
• Sturdy steel cabinet with a thickness to 1.0 mm.
• Epoxy coated to prevent rust and corrosion.
• TIS 1436-2540 standard of a unique consumer cabinet.
• 2 year equipment warranty and 5 year cabinet warranty.
• Made in Thailand.
